ACTIVE SPEAKERS & SUBWOOFERS

P1500X                15" FULL-RANGE BASS-REFLEX SPEAKER

   Specifications:



  • System Configuration: Active 2-way full-range, bass reflex

  • Frequency Range (-10 dB): 49.8 Hz – 23.5 kHz

  • Frequency Response (±3 dB): 55.0 Hz – 20.5 kHz

  • Nomiinal Coverage (-6 dB): 90° Horizontal, 65° Vertical

  • Maximum SPL(1W @ 1m): 134 dB

  • Amplifiier Type: Class D

  • Amplifier Rating: 1500 Watts Dynamic, 540 Watts Continuous

  • Low Frequency Driver: 15"

  • High Frequency Driver: 1¾” diaphragm, 1” exit

  • Connectors: CH 1&2 - Neutrik™ XLR/TRS inputs, CH3 Dual ¼” TS THRU 1&2 - XLR, MIX XLR

  • Indicators: Signal/Clip, Power, Limiter, Protect

  • Enclosure: Polymer cabinet, flush waveguide

CVA-28                DUAL 8" ACTIVE FULL RANGE SPEAKER



  Specifications:



  • Compact High-Performance Full Range Active Speaker

  • Built-in System Amplification (400 W RMS / 800 W Peak)

  • Tri-Amped Dual 8” with Concentric Driver

  • 34mm Concentric HF Driver for "Studio Like" Voicing

  • Sub / No Sub Switch for High Pass Filter

  • Choose between Mic or Line Level Input

  • Contour Switch Provides an Alternate, Complex EQ Circuit Boost.

  • Cast Aluminum Grille

  • Solid 18mm Hardwood Enclosure with Paint

  • Frequency Response: 70 Hz - 20 KHz (±3 dB)

  • Peak Power Handling: 800 watts

  • Program Power Handling: 400 watts continuous

  • Frequency Range: 60 Hz - 20 KHz (-10 dB)

  • Max SPL: 128 dB

  • Input Connectors: XLR/F Balanced 1/4" TRS

  • Output Connectors: XLR/M 1/4" TRS

CVA-118               18" ACTIVE SUBWOOFER



 Specifications



  • Built-in System Amplification (700 W RMS / 1400 W Peak)

  • 4-Position High Pass Filter

  • Sweepable Low Pass Filter

  • Frequency Response: 39 Hz - 135 Hz (±3 dB)

  • Peak Power Handling: 1400 watts

  • Program Power Handling: 700 watts

  • Frequency Range: 36 Hz - 135 Hz (-10 dB)

  • Max SPL: 131 dB

  • Crossover:LPF: Continuously variable from 65 Hz to 130 HzHPF: Selectable Output 65Hz, 85Hz 130Hz or Bypass

  • 18" Woofer with 3 " Voice Coil

  • Input Connectors: XLR/F Balanced 1/4" TRS

  • Output Connectors: XLR/M 1/4" TRS

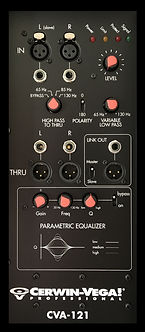

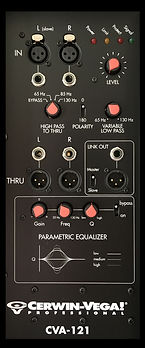

CVA-121                21" ACTIVE SUBWOOFER



  Specifications

  • Built-in System Amplification (1200 W RMS / 2400 W Peak)

  • Versatile Onboard Parametric Equalizer

  • 4-Position High Pass Filter

  • Sweepable Low Pass Filter

  • Frequency Response: 35 Hz - 135 Hz (±3 dB)

  • Peak Power Handling: 2400 watts

  • Program Power Handling: 1200 watts

  • Frequency Range: 32 Hz - 135 Hz (-10 dB)

  • Max SPL: 135 dB

  • Crossover:
    LPF: Continuously variable from 65 Hz to 130 Hz
    HPF: Selectable Output 65Hz, 85Hz 130Hz or Bypass

  • 21" Woofer with 4" Voice Coil

  • Input Connectors: XLR/F Balanced 1/4" TRS
  • Output Connectors: XLR/M 1/4" TRS

THUMP-15A

15 " ACTIVE FULL RANGE SPEAKER

   Specifications



  • LF 300W peak power (Class-D)

  • HF 100W peak power (Class A/B)

  • 15" high-precision woofer

  • 1” compression driver

  • User-adjustable 3-band contour EQ with sweepable mid-frequency

  • Mic/Line input for direct connection of single microphone

  • Frequency Range (-10 dB): 40Hz-20kHz

  • Frequency Response (-3 dB): 50Hz-18.5kHz

  • Maximum SPL Long-Term: 113dB SPL @ 1m

  • Maximum SPL Peak: 116dB SPL @ 1m

  • Input Type: Female XLR Balanced/Unbalanced

  • Input Impedance: 20kOhms balanced bridging; 10kOms unbalanced

  • Loop-through: Male XLR Balanced/Unbalanced (parallel with input)

PA-8000

Wireless Battery PA system

•  clear and dynamic sound.The system is used Digital power     amplification, Substantially enhance power efficiency and battery power life.

•  Used the aluminium alloy metal cabinet design, very decent and durable.

•  Invisible pole and wheel design, very convenience for travelling.

•  Audio Link function, it can be connected with many other speakers for the big space performance.

•  Dual wireless handheld microphones and headset

•  Build in CD player and UHF receiver module.

•  All audio signal source can be independently control and tweeter woofer volume control.

•  Build in rechargeble battery and automatic charge device, very fast for power charge.Maximum Output Power is 200W with 4ΩLoad(Music), worked with independenct woofer unit, the systerm   have very smooth frequency response, very

ULTIMATE SUPPORT TS-80B SPEAKER STAND

  • Height: 3'8" - 6'7" (1118 mm - 2007 mm)

  • Weight: 7.3 lbs. (3.3 kg)

  • Base Diameter: 47" (1194 mm)

  • Telescoping Tube Diameter: 1.5" (38 mm)

  • Adapter Diameter: 1.375" (35 mm)

  • Load Capacity: 150 lbs. (68.2 kg)

  • Folded: 43.5" x 5.5" (1105 mm x 140 mm)
